cymoca::ast::INode Class Reference

#include <node.h>

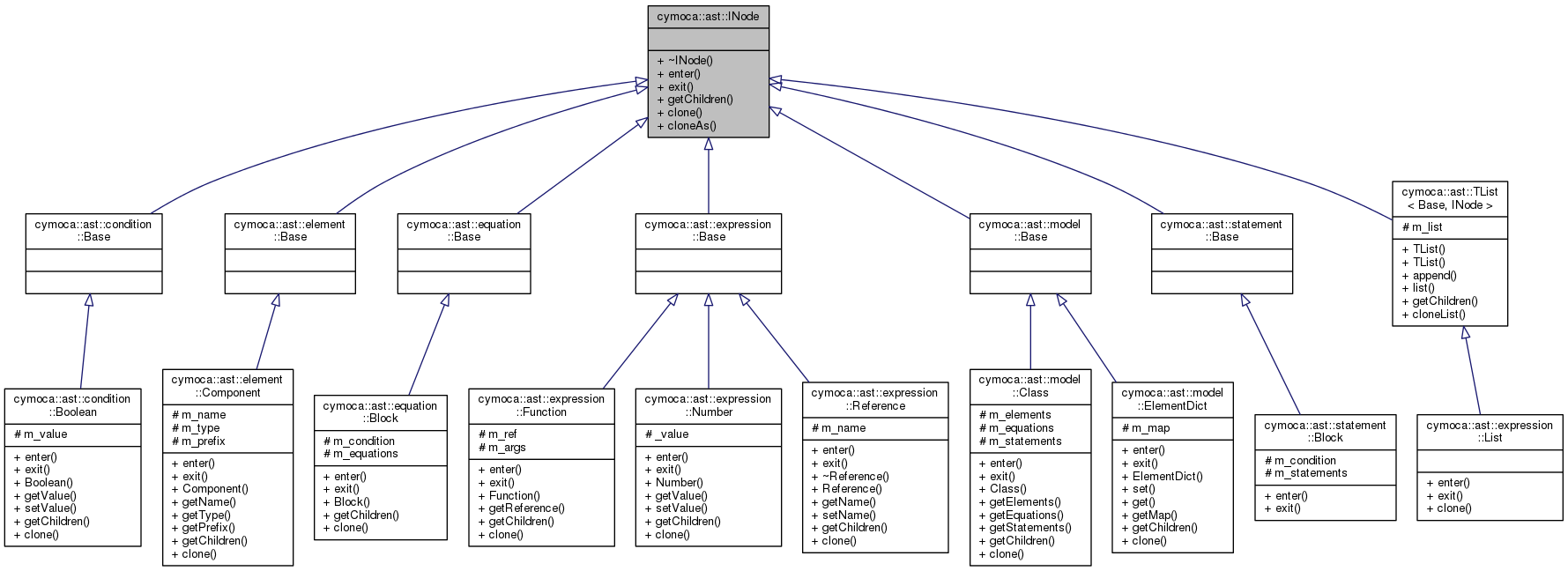

Inheritance diagram for cymoca::ast::INode:

Collaboration diagram for cymoca::ast::INode:

Public Member Functions
virtual	~INode ()
virtual void	enter (listener::Base &listener)=0
virtual void	exit (listener::Base &listener)=0
virtual std::vector< INode * >	getChildren ()=0
virtual std::unique_ptr< INode >	clone () const =0
template<class T >
std::unique_ptr< T >	cloneAs ()

Detailed Description

The abstract sytnax tree node interface. All nodes of the tree implment this interface. Base classes should inherit virtually to allow nodes with multiple types.

Definition at line 27 of file node.h.

Constructor & Destructor Documentation

virtual cymoca::ast::INode::~INode ( )

inlinevirtual

Definition at line 29 of file node.h.

Member Function Documentation

virtual std::unique_ptr<INode> cymoca::ast::INode::clone ( ) const

pure virtual

Perform a deep copy of this node.

Implemented in cymoca::ast::expression::Function, cymoca::ast::condition::Boolean, cymoca::ast::expression::List, cymoca::ast::model::Class, cymoca::ast::expression::Number, cymoca::ast::model::ElementDict, cymoca::ast::equation::Block, cymoca::ast::element::Component, and cymoca::ast::expression::Reference.

Here is the caller graph for this function:

template<class T >

std::unique_ptr<T> cymoca::ast::INode::cloneAs ( )

inline

Perform a deep copy and cast to the template type.

Definition at line 50 of file node.h.

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void cymoca::ast::INode::enter ( listener::Base &  listener )

pure virtual

A double dispatch entrace hook for listeners.

Implemented in cymoca::ast::expression::Function, cymoca::ast::condition::Boolean, cymoca::ast::expression::List, cymoca::ast::expression::Number, cymoca::ast::model::Class, cymoca::ast::statement::Block, cymoca::ast::equation::Block, cymoca::ast::model::ElementDict, cymoca::ast::element::Component, and cymoca::ast::expression::Reference.

Here is the caller graph for this function:

virtual void cymoca::ast::INode::exit ( listener::Base &  listener )

pure virtual

A double dispatch exit hook for listeners.

Implemented in cymoca::ast::expression::Function, cymoca::ast::condition::Boolean, cymoca::ast::expression::List, cymoca::ast::expression::Number, cymoca::ast::model::Class, cymoca::ast::statement::Block, cymoca::ast::equation::Block, cymoca::ast::model::ElementDict, cymoca::ast::element::Component, and cymoca::ast::expression::Reference.

Here is the caller graph for this function:

virtual std::vector<INode *> cymoca::ast::INode::getChildren ( )

pure virtual

Returns a list of children (non-owning).

Implemented in cymoca::ast::TList< Base, INode >, cymoca::ast::expression::Function, cymoca::ast::condition::Boolean, cymoca::ast::model::Class, cymoca::ast::expression::Number, cymoca::ast::model::ElementDict, cymoca::ast::equation::Block, cymoca::ast::element::Component, and cymoca::ast::expression::Reference.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• node.h
